Overview

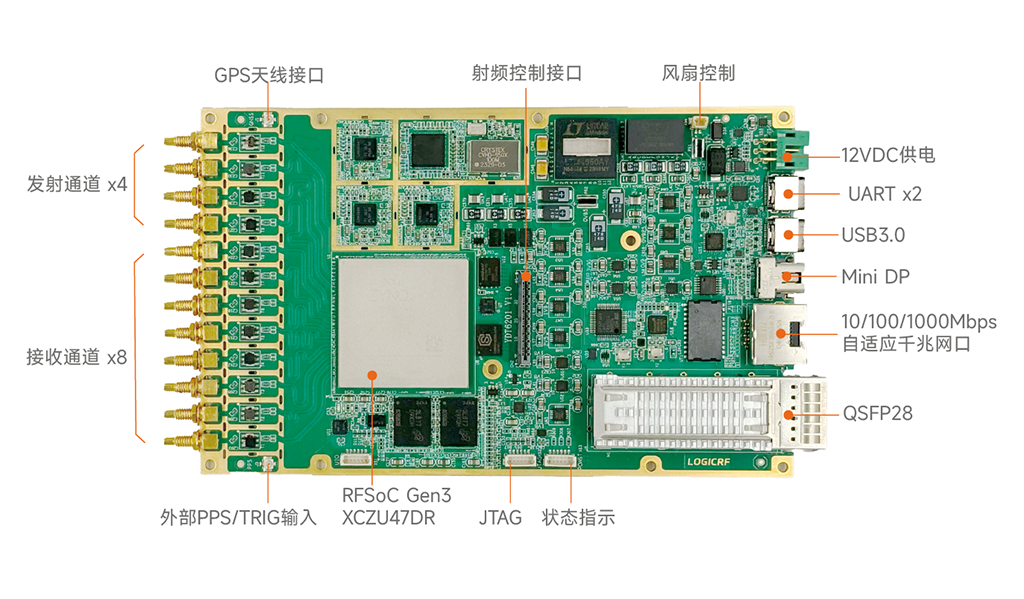

LogicRF™ H407 is based on the Xilinx RFSoC Gen3 XCZU47DR.
LogicRF™ H407 RFSoC SDR+ Platform is designed for integration into deployed RF
systems demanding small footprint, low power, and real-time processing. In most
cases, it can be used as a standalone product to better play its advantages.
LogicRF™ H407 RFSoC SDR+ features the AMD Zynq® UltraScale+™ RFSoC
Gen3,with 8 RF-ADC, 4 RF-DAC channels, and 5GHz RF bandwidth.

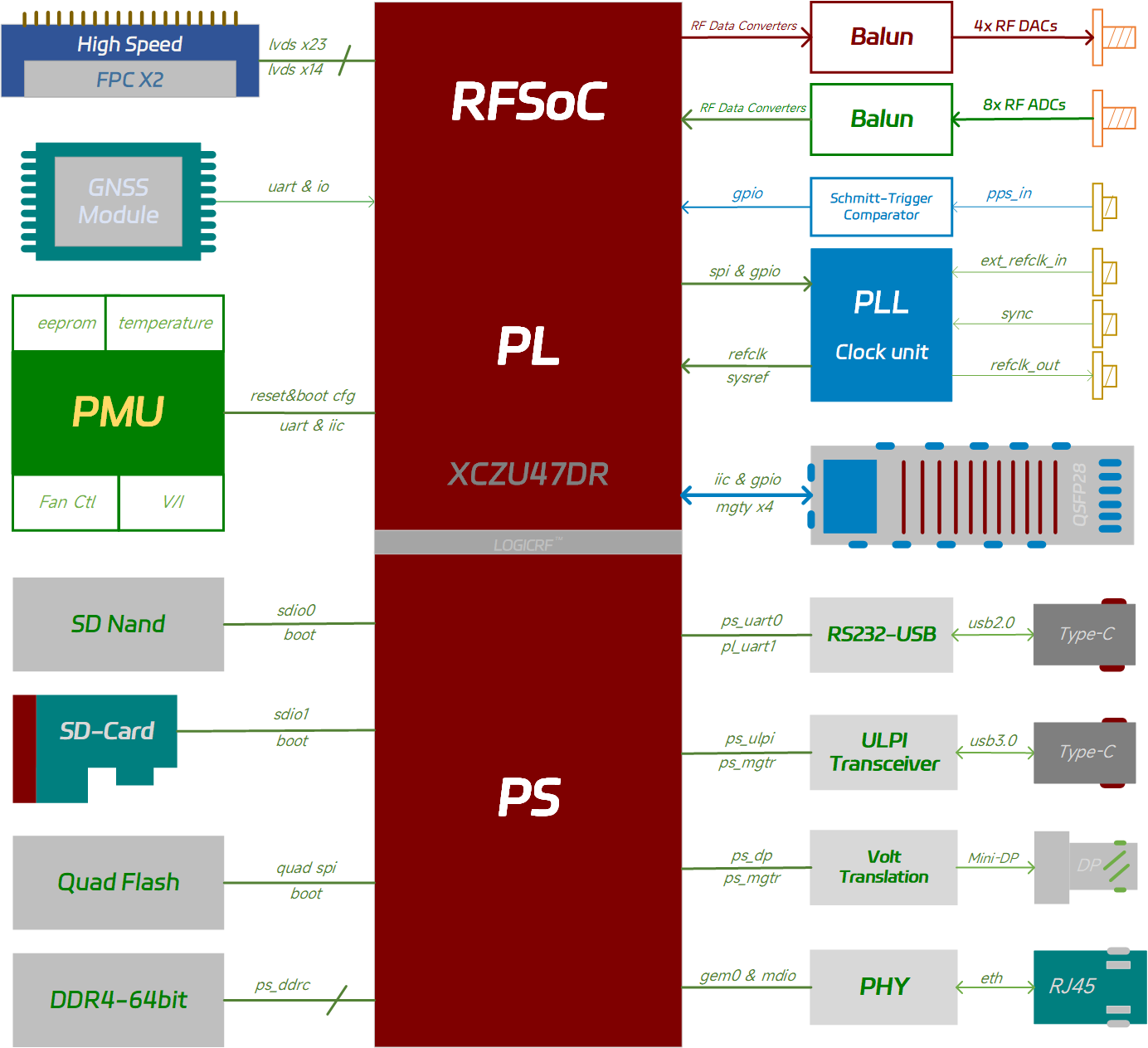

Features

AMD Zynq UltraScale+ Gen3 ZU47DR RFSoC
- Quad core ARM Cortex-A53, Dual core ARM Cortex–R5F
- Programmable Logic with 930K logic cells, 4272 DSP slices, 38Mb block RAM
- 14-bit 8x 5GSPS RF ADCs SSMC/SMP ports
- 14-bit 4x 9.85GSP RF DACs SSMC/SMP ports
- 10/100/1000 Mbps Ethernet
- 1x QSFP28 port (10 Gigabit Ethernet, 100 Gigabit Ethernet, Aurora)
- 1x Type-C USB3 host port
- 1x USB2 port for UART and COM
- Mini DisplayPort
Onboard GNSS module, supports external PPS signals
2x Custom high-speed expansion FPC interface for Radio Frequency Front-End
Clocks & Synchronization
- Multiple high-accuracy and programmable clock sources
- Ultra-low jitter programmable sampling clocks
- External clock in/out and sync ports
Memory
- 4GB DDR4 Processor Subsystem
- SDIO2.0 MicroSD Card
- SDIO2.0 32Gb SD Nand
- 128MB QSPI boot storage
System
- Reliable and independent power management unit
- Dimension: 85 x 135 mm
- 6V to 14V input(Type-C or JL23)
- Active power monitoring (current and voltage) for main supplies
- Industrial temperature rated
- Air and conduction cooling option

Applications
- 5G and LTE wireless technology
- Phased array radar/digital array radar
- EW/EA Systems
- Satellite communication
- Software Defined Radio (SDR)
- Wideband RF Record and Playback
- Spectrum Monitoring
- Communications Test Equipment
