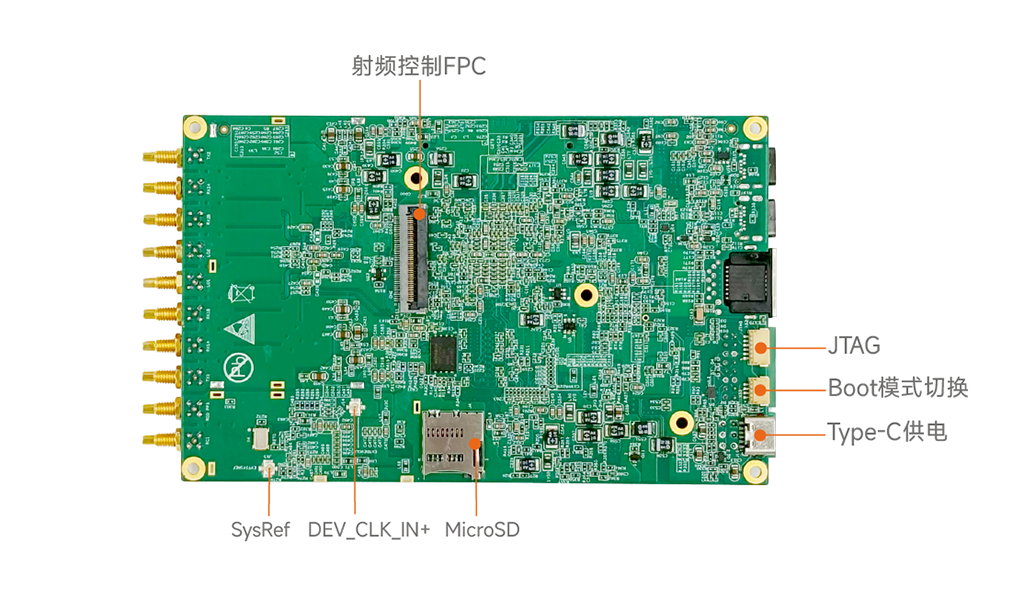

The LogicRF™ H102 SDR+ platform is the latest high-performance, compact Software-Defined Radio (SDR) platform.

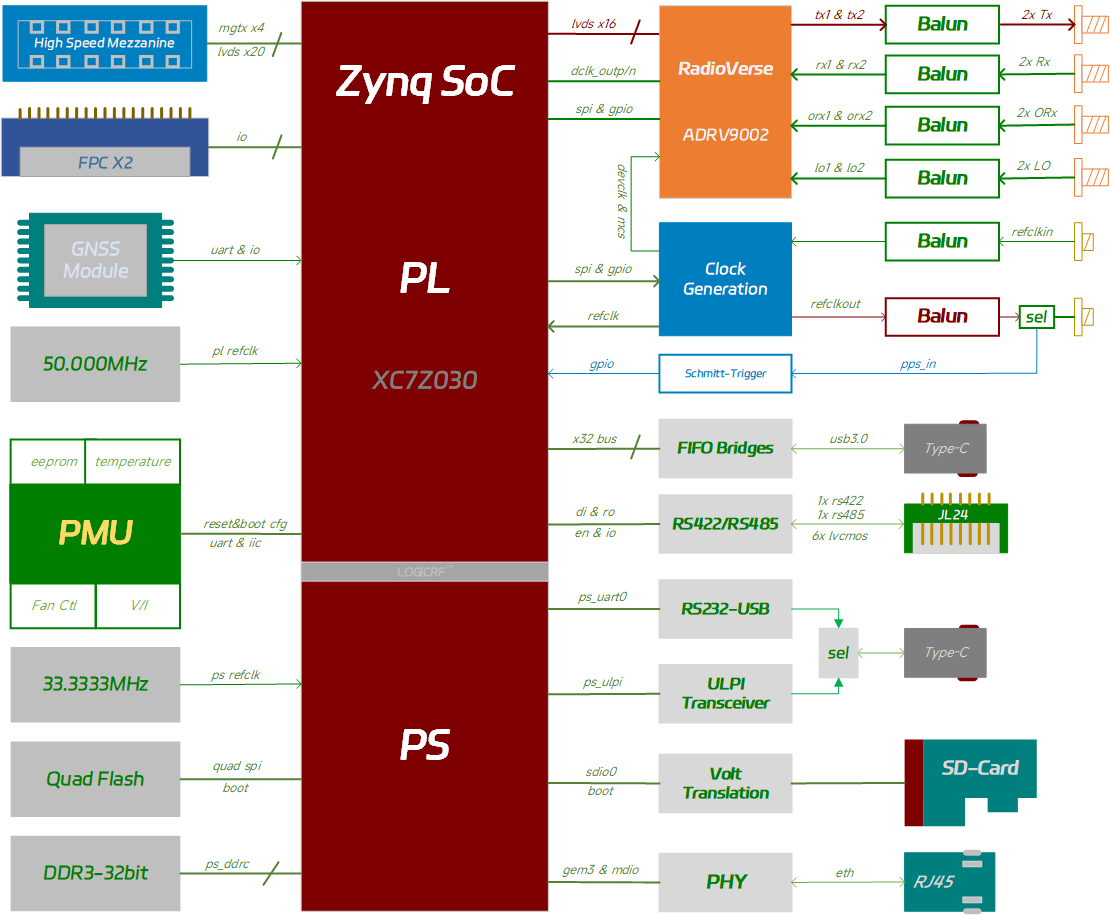

 Based on ADI’s highly integrated broadband RF transceiver ADRV 9002 and Xilinx Zynq-7030 programmable System-on-Chip (SoC),

the LogicRF™ H102 SDR+ platform is an ideal solution for high-performance frequency agility, fast frequency hopping, and mission-critical communication applications.

Key Features

Complete Transceiver Signal Chain Solution with ADRV9002

• 2x Tx SSMC/SMP Ports

• 2x ORx SSMC/SMP Ports

• 2x External LO SSMC/SMP Ports

• Frequency Range: 30 MHz to 6 GHz

• Transmitter and Receiver Bandwidth: 12 KHz to 40 MHz

• Fast Frequency Hopping

High-Performance Signal Processing Xilinx Zynq Series FPGA

• 1GB 32-bit DDR3 Memory for PS

• SDIO 2.0 MicroSD Card (supports Boot)

• 128 MB QSPI Flash

• 10/100/1000 Mbps Ethernet

• 1x Type-C USB3 Slave Port

• 1x Type-C USB2.0 OTG Port (configurable for PS Uart output)

• 1x 10 Mbps RS485,

• 1x 10 Mbps RS422 & LVTTL

Onboard GNSS Module, supports external PPS signal

1x LogicRF™ Custom High-Speed Expansion Interface (GTX & LVDS)

2x FPC Interfaces for RF Front-End

Clock & Synchronization

• High-Precision and Programmable Clock Source

• External Clock Input/Output and Synchronization Ports System

Independent and Reliable Power Management

Unit Bare Board Dimensions: 85 x 135 mm

Input Voltage: 6V to 14V DC (Type-C or JL23 Connector)

Active Power Monitoring for Main Power (Current and Voltage)

Operating Temperature Range: Industrial Grade (-40℃ to +85℃)

 Software Support

• GNURadio

• MathWorks

• PyADI-IIO
